Emphasise a Reference Isopleth#

Forecasters read a tephigram against a handful of reference lines — the 0 °C isotherm for the freezing level, −20 °C for the cold limit of the airframe icing band, a mandatory pressure level. The emphasis option distinguishes any member of any isopleth family.

The Freezing Level#

Map the member value to an empty style. The member keeps its family’s colour and draws at 1.5 pt instead of the usual 0.5 pt — the printed-chart idiom of same ink, heavier line:

import matplotlib.pyplot as plt

import tephpy  # registers the "tephigram" projection

fig, ax = plt.subplots(subplot_kw={"projection": "tephigram"})
ax.isotherms(emphasis={0.0: {}})

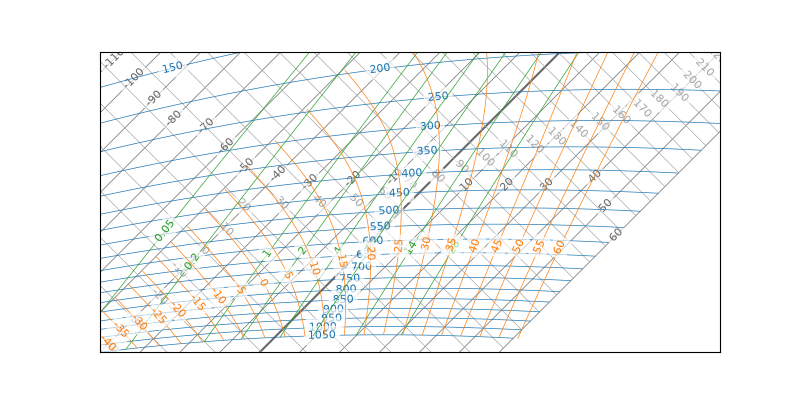

../_images/emphasis-freezing-level.png

Colour and Dashes#

Any of color, linewidth, linestyle and alpha overrides that default, so the airframe icing band’s bounds can carry their own styling:

ax.isotherms(
    emphasis={
        0.0: {"color": "tab:cyan"},
        -20.0: {"color": "tab:cyan", "linestyle": "--"},
    }
)

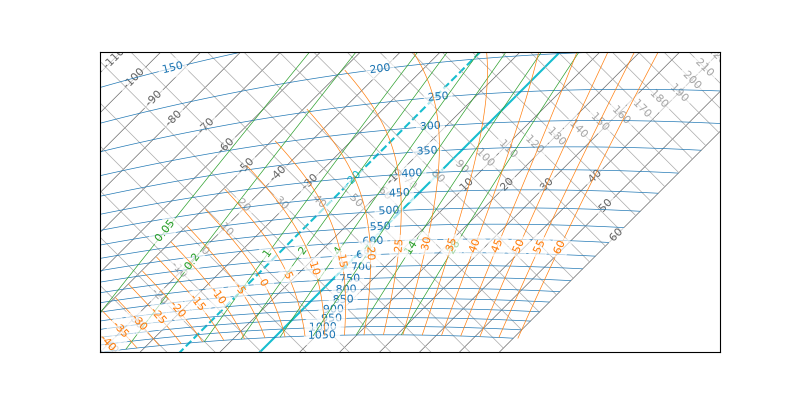

../_images/emphasis-colour-and-dashes.png

An omitted key falls back to the family’s own style, so {0.0: {"linestyle": "--"}} is a dashed member in the family’s colour at the emphasis width.

Values the Interval Never Lands On#

An emphasised member is always drawn, whatever the zoom ladder would select, so the dendritic growth zone’s −12 °C and −18 °C bounds appear even though no isotherm interval includes them:

ax.isotherms(
    emphasis={
        -12.0: {"color": "tab:purple"},
        -18.0: {"color": "tab:purple"},
    }
)

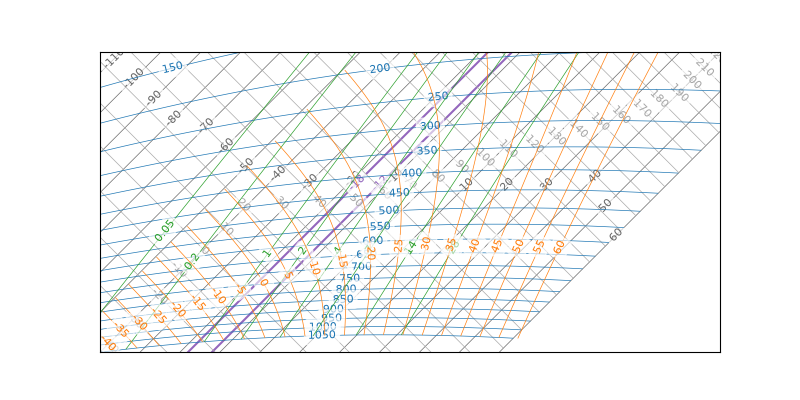

../_images/emphasis-off-interval.png

A value outside the diagram’s domain is a no-op — it is simply never in view. That is silent on the analytic families (isotherms, dry adiabats and isobars); the curved moist adiabats and mixing ratios build through MetPy, which can warn about a far-out value before the diagram ever gets to ignore it, so emphasise a value those families actually cover.

Every Family, Every Tier#

The option is the same on all five families, so a mandatory pressure level is the same gesture:

fig, ax = plt.subplots(subplot_kw={"projection": "tephigram"})
ax.isobars(emphasis={500.0: {}})

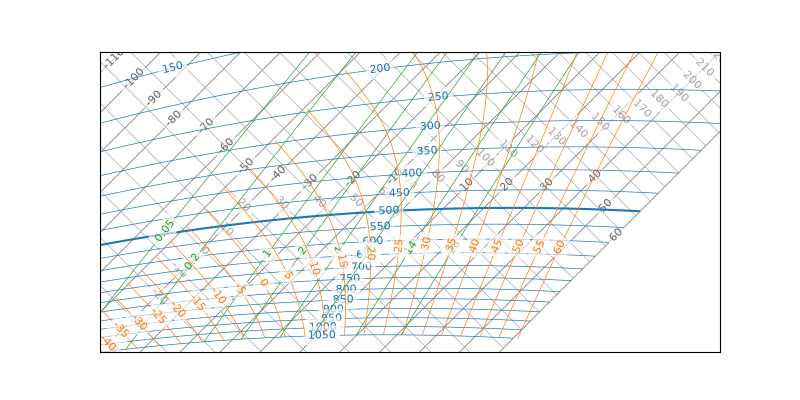

../_images/emphasis-every-family.png

and it takes the usual precedence — the accessor keyword over tephpy.config over the convention default.

Configure It Once#

A family reads tephpy.config when the axes is created, and re-reads it on ax.clear(), so the configuration has to be in force before the diagram it should apply to exists. tephpy.config.context() scopes it to exactly that:

with tephpy.config.context(isotherms={"emphasis": {0.0: {"color": "tab:red"}}}):
    fig, ax = plt.subplots(subplot_kw={"projection": "tephigram"})

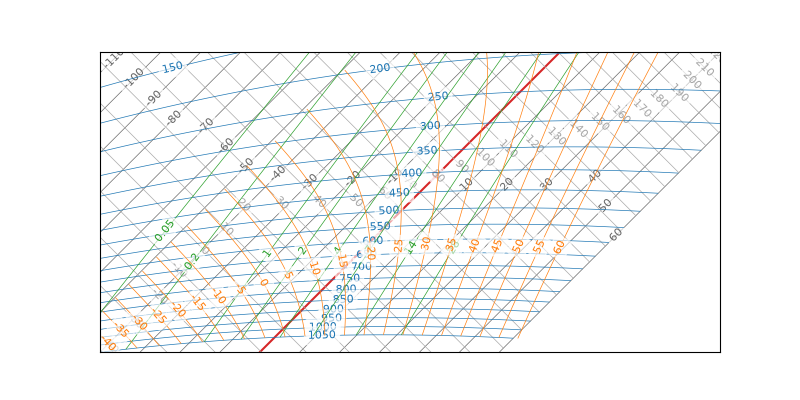

../_images/emphasis-from-config.png

Setting tephpy.config.isotherms.emphasis directly does the same thing and keeps doing it, for every axes created afterwards, until something puts it back. Reach for that where a house style is the point — a configuration file (Configure tephpy From a File) is the tidier home for one — and for a single diagram prefer the accessor keyword the sections above use.

Passing an empty mapping at the accessor emphasises nothing, which is how one diagram opts out of a configured emphasis:

ax.isotherms(emphasis={})

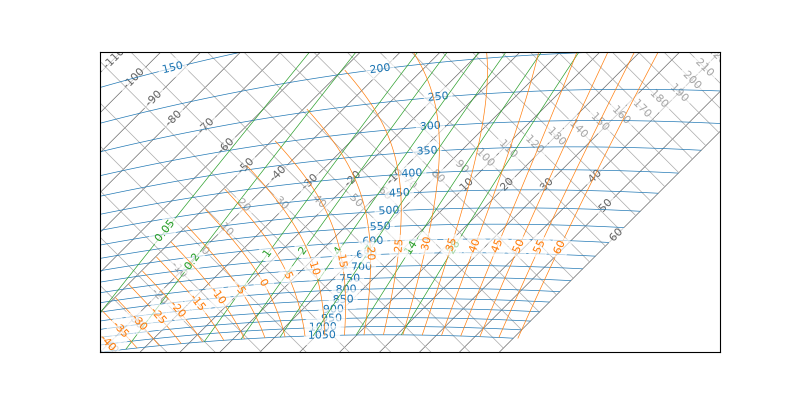

../_images/emphasis-opt-out.png

Note

Emphasis reaches a member’s line and its inline label. Where a family labels a diagram edge instead, that edge’s tick marks and tick labels take one colour for the whole family — matplotlib styles ticks per axis, not per tick — so an emphasised member’s edge tick is placed but not recoloured.
